Slurry Pumps &
Mine Dewatering Pumps
Explore Ganquan slurry pumps and mine dewatering pumps for handling water and solids in mining applications. Selection depends on the required flow and head, particle size, solids concentration and installation conditions. Share your operating requirements so we can review suitable pump options.
Tell us where the material comes from, what it contains and where it needs to go. Share any available information about particle size, solids concentration and the existing pump. We can help clarify the duty and coordinate the pump, materials and supporting equipment for your project.
Applications for Slurry Pumps & Mine Dewatering
Mine Dewatering
Remove accumulated water from mine workings and collection areas, with pump selection matched to the required flow, total head, water conditions and available power supply.
Sand & Slurry Transfer
Transfer water containing sand or abrasive solids, with pump selection based on particle size, solids concentration and the required pumping duty.
Silt & Sediment Removal
Pump sediment-laden water from collection pits and settling areas, with the material characteristics, available water depth and removal method reviewed for the project.
Slurry & Mining Pump Options
The following Ganquan pump families cover different slurry-handling and mine-dewatering duties. Selection depends on the material being pumped, the required flow and head, and the site’s installation and electrical requirements.
| Series | Pump Type | Selection Focus |
|---|---|---|
| NSQB | Submersible slurry and sand pumps | Sand and abrasive slurry duties, with particle size, solids concentration, density and wear conditions reviewed. |
| QKSG | High-voltage submersible mining pumps | Mine dewatering duties, with flow, head, water conditions, power supply and installation requirements confirmed for the project. |
Final selection requires performance data for the proposed model and confirmation of its suitability for the actual duty. For slurry applications, clean-water performance data alone does not establish slurry performance or wear life. For mining installations, any hazardous-area or explosion-protection requirements must be stated and checked against the proposed equipment’s documentation.
Material & Site Conditions
Share the information available about the material and the pumping site. These details help us review suitable pump options for slurry transfer or mine dewatering and identify the technical requirements for your project.
- Application: slurry transfer, sand removal, mine dewatering or another duty.
- Pumped material: water source, solids type and any known chemicals or corrosive substances.
- Solids information: approximate particle size, solids concentration and whether the concentration is measured by mass or volume, if known.
- Material properties: slurry density, water temperature, pH and any available analysis or test reports.
- Required duty: flow rate, total head and expected operating hours, including any seasonal or process variations.
- Delivery route: elevation difference, pipe length, pipe diameter and the discharge destination.
- Installation conditions: pump position, available water depth, operating water levels and access for lifting and maintenance.
- Power and site requirements: available voltage and frequency, controls and any specified hazardous-area or explosion-protection requirements.
- Existing equipment: pump model, nameplate photographs and any problems with wear, blockage or performance.
If some details are unknown, share what you have. Site photographs, pipeline drawings, existing pump records and material reports can help us identify what still needs to be confirmed.
Mining Pump Motor Certification

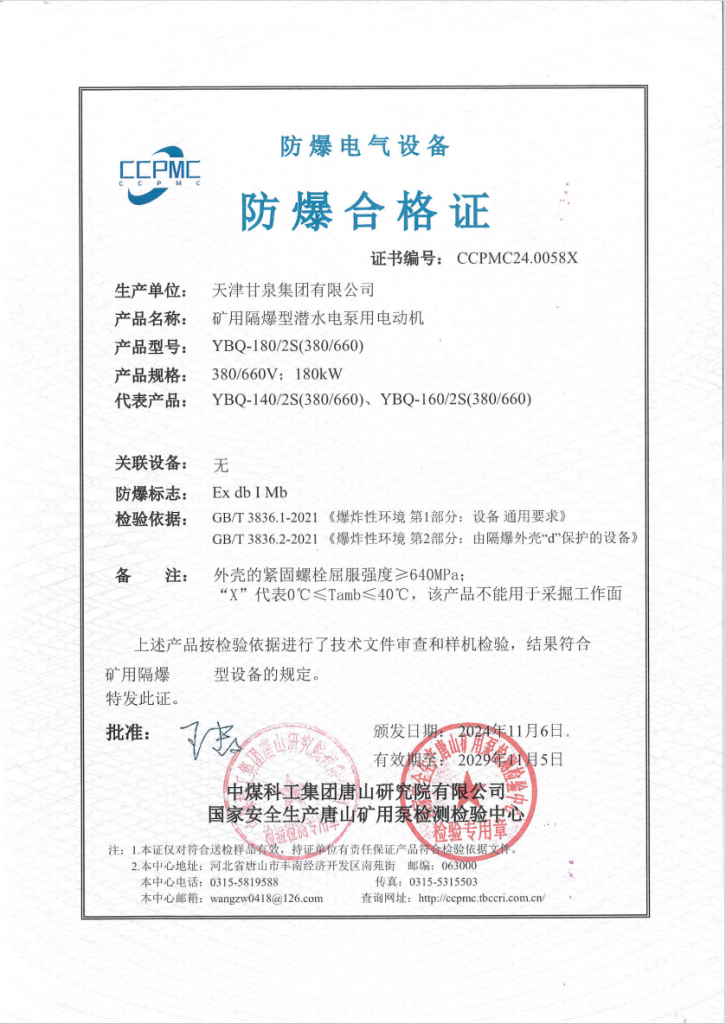

Ganquan’s YBQ-180/2S(380/660) motor for mining flameproof submersible pumps is covered by Chinese explosion-proof certificate CCPMC24.0058X.
| Item | Certificate Details |
|---|---|
| Main model | YBQ-180/2S(380/660) |
| Rated voltage — main model | 380/660 V |
| Rated power — main model | 180 kW |
| Explosion-protection marking | Ex db I Mb |
| Certificate No. | CCPMC24.0058X |
| Referenced standards | GB/T 3836.1-2021; GB/T 3836.2-2021 |
| Certificate validity | 6 November 2024 – 5 November 2029 |
Certificate Scope & Conditions
The certificate also lists YBQ-140/2S(380/660) and YBQ-160/2S(380/660) as representative products.
Conditions stated in the certificate:
- Ambient temperature must be above 0°C and below 40°C.
- The product must not be used at mining or excavation working faces.
- Enclosure fastening bolts must have a yield strength of at least 640 MPa.
Tell Us About Your Slurry or Mining Project
Tell us your project location, what needs to be pumped and where it needs to go. Include any known flow and head requirements, along with details of the water or slurry. We can help review suitable pump options and clarify the equipment requirements for a quotation.
Start with the information you have. Photographs of the site, existing pump and nameplate, along with any available material reports or pipeline drawings, can help us understand your needs. If a technical detail is unknown, simply tell us.
