Ganquan Project References
Explore selected Ganquan projects in agricultural water supply, surf training and geothermal well pumping. These references show equipment supplied for different applications, supported by project descriptions and photographs published by Ganquan Group.
Agricultural Water Supply in Mali
Ganquan Group reports that it exported full tubular submersible pumps to Mali on three occasions between 2013 and 2015 to support agricultural projects. The documented deliveries provide a reference for the use of this pump type in agricultural water supply.
2013 Supply Details
| Item | Published Details |
|---|---|
| Destination | Mali, West Africa |
| Application | Agricultural water supply |
| Pump type | Full tubular submersible pumps |
| Quantity supplied | 6 pumps |
| Reported diameter | 700 mm |
Surf Training Project in
New Zealand
Ganquan supplied four full tubular submersible pumps for a surf training application in New Zealand, with completion recorded in July 2019.

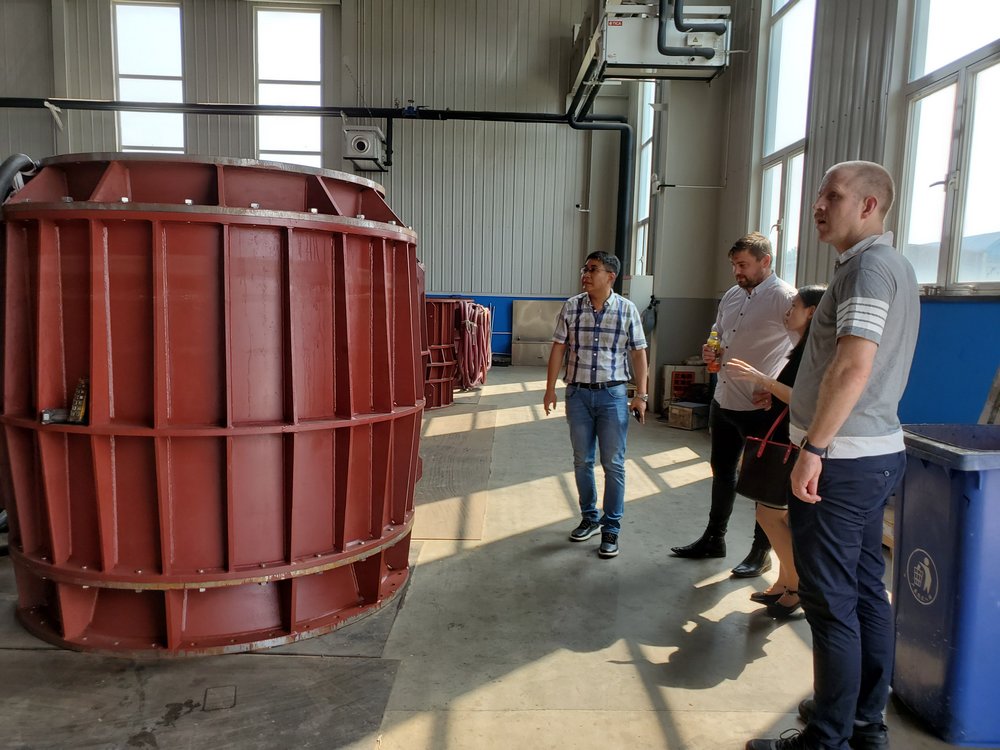

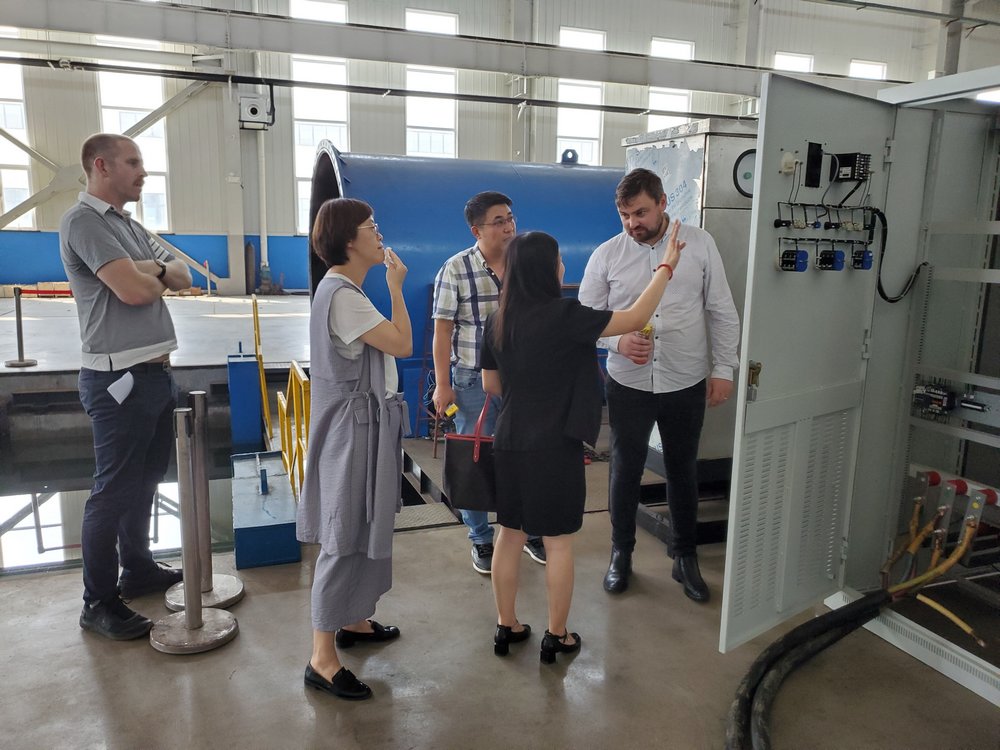

According to Ganquan’s project records, the pumps were specified for vertical installation and variable-frequency control to create different wave conditions for athlete training. The manufacturer also documented a customer visit for equipment acceptance and factory testing.
Project Details
| Item | Reported Details |
|---|---|
| Location | New Zealand |
| Application | Surf training |
| Pump model | 1400QGWZ-125-280 |
| Quantity | 4 pumps |
| Flow rate per pump | 5.4 m³/s |
| Head / Maximum head | 3.15 m / 4.5 m |
| Power per pump | 280 kW |
| Voltage | 400 V |
| Recorded completion | July 2019 |

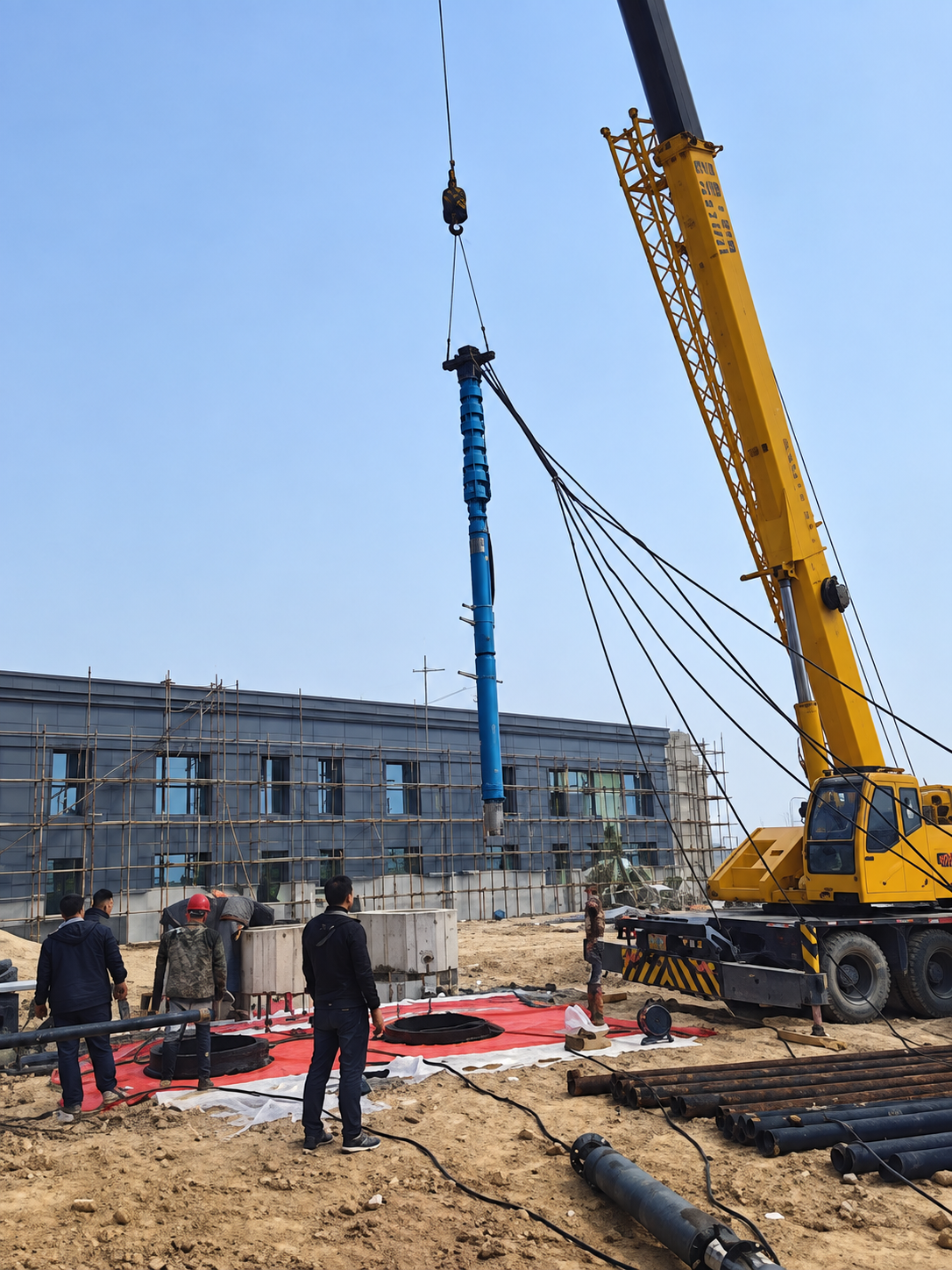

Geothermal Well Pump Upgrade in Yuncheng
At the Waitan Xiyuan residential development in Yuncheng, Shanxi, the geothermal well had limited clearance between conventional heat-resistant well pumps and the well casing. Previous pump replacements had not delivered enough water to meet the heating demand.
Ganquan developed a well pump specifically for the site’s installation constraints. According to the manufacturer’s project report, the pump passed its first trial run, increased water output and operated with normal voltage and current.
The reported result avoided the need to enlarge the well, demonstrating the importance of matching the pump to the available well dimensions and operating requirements.
Project Details
| Item | Reported Details |
|---|---|
| Location | Yuncheng, Shanxi, China |
| Project | Waitan Xiyuan residential development |
| Application | Geothermal water extraction for heating |
| Installation challenge | Limited clearance between pump and well casing |
| Pump solution | Site-specific geothermal well pump |
| Reported outcome | Increased water output without well enlargement |
